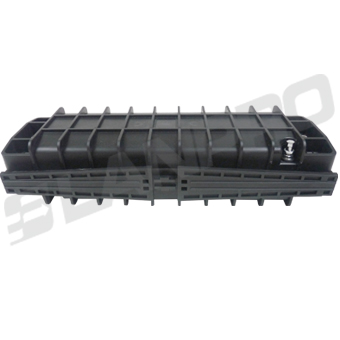

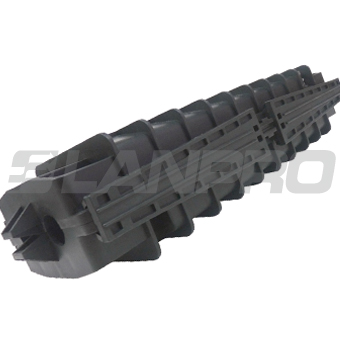

The LP-F2206048BK Horizontal Fiber Optical Splice Closure 6 ports for 48 single cores this product can be applied in the straight line and branch line (one into two, one into three) connections of optical cables, all types and structures, when laid overhead, in the pipeline, underground or in the well.


It is also applied to the connection of all-plastic city phone cables.

* 6 Port for 48 single cores.

* The case body is made from high-intensity engineering plastics (ABS) and the shape formed with mould plastics under high pressure. It is in the shape of HALF rectangle, with the advantages of less weight, high mechanical resistance, corrosive - resistance, anti-thunderstruck and long service life.

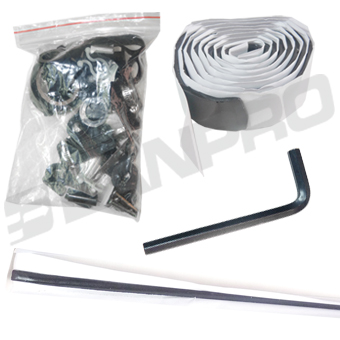

* The case body and cable entrance are sealed with adhesive rubber strip (non-vulcanized) and sealed tape. Reliable sealing capability. It can be re-opened and easy to maintain.

* Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthing flexible, convenient and safe.

* Outer metal component and fixing unit are made of stainless steel, so it can be repeatedly used in different environments.

* Versatile Installation: Can be used aerial, buried or screwed to walls or poles.

LP-F2206048BK Horizontal Fiber Optical Splice Closure 6 ports 48 single cores
