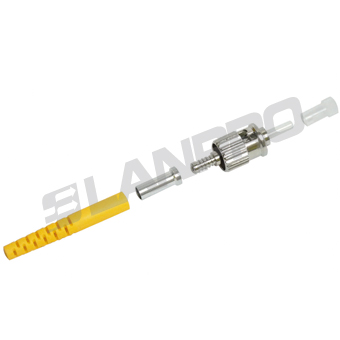

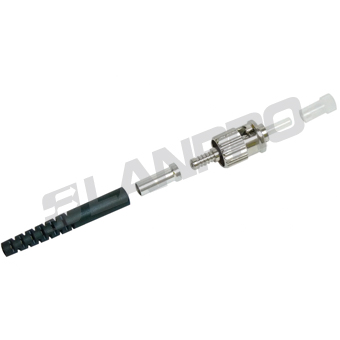

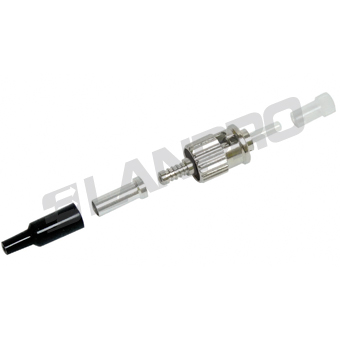

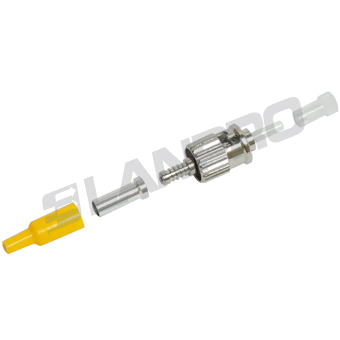

| The ST connector has been a workhorse for years and can be found in every communications room around the globe. Simple to use, precision made, and mechanically stable, the bayonet style locking mechanism secures against accidental disconnections. Built with a nickel plated brass body and a ceramic ferrule with a springcrimp barrel assembly and a crimp over sleeve with rubber boot. Cable sizes accommodated: 0.9, 2 and 3 mm. | |||
| HOW TO ORDER |
LP-FXXTMMBCH LP-F LanPro Optical XX Fiber Solutions Code 11: Fiber Optic Connector T Connector Type A: ST Pre Angled C: FC/PC Pre Angled Typical type D: FC/PC Pre Angled One Piece Type I: FC/APC Pre-Angled 8º F: SC Pre Angled H: SC Pre Angled Duplex Type J: SC/APC Pre angled 8º One Piece Type 5: SC II/APC Pre Angled 8º One Piece Type L: LC Simplex P: LC Duplex Type Q: LC/APC Simplex Pre Angled 8º M: MTRJ Female N: MTRJ + Guide Pin Male R: MTRJ II S: MTRJ II + Guide Pin 1: LC II Simplex 2: LC II Duplex 3: LC II Simplex Square-Flange 4: LC II Duplex Square-Flange 6: SC II Simplex 7: SC II Duplex 8: SC II Simplex Square-Flange 9: SF II Duplex Frange MM MODE/Polish Type 1: MM PC polish 2: SM PC Polish 3: SM SPC Polish 4: SM UPC Polish 5: SM APC Polish B Cable Boot Type 1: For 3.0mm cable 2: For 0.9mm cable 3: For 2.0mm cable (Only for MTRJ & LC) 4: For 1.8 mmcable Minizip 5: For both 3.0 mm and 0.9mm kit 6: For both 3.0 mm and 2.0mm kit C Boot Color 1: Black 2: Red 3: Yellow 4: Green 5: Blue 6: Ivory 7: Black and Red 8: White H Housing 1: Black 2: Red 3: Yellow 4: Green 5: Blue 6: Ivory 7: Black and Red 8: White 9: Metal e.g. LP-F11A1519, Fiber Optic Connector ST Thread Type MM 62.5/125 PC Polish with both 3mm and 0.9 mm Black Boots. LP-F11A2539, Fiber Optic Connector ST Thread Type SM 9/125 PC Polish with both 3mm and 0.9 mm Yellow Boots. |
||
