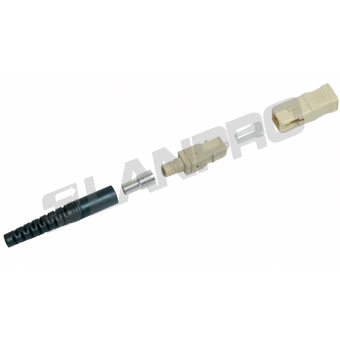

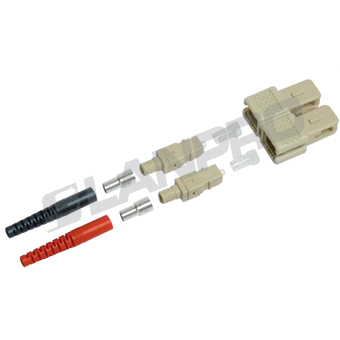

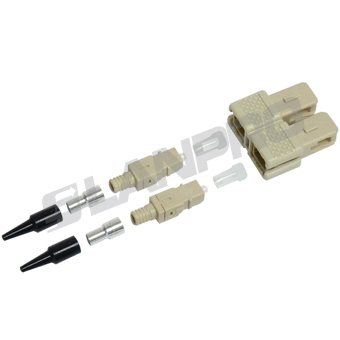

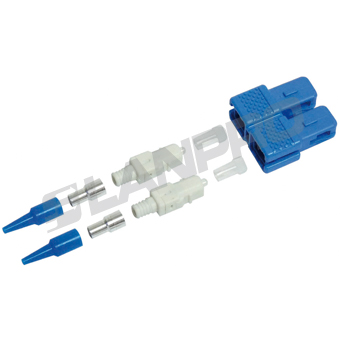

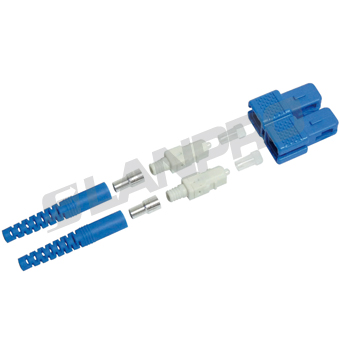

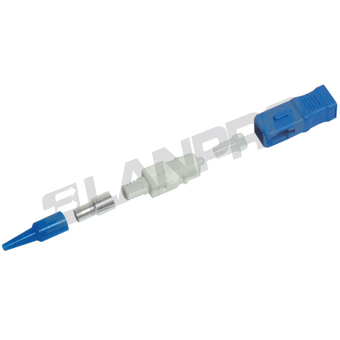

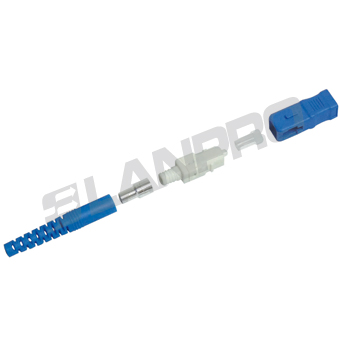

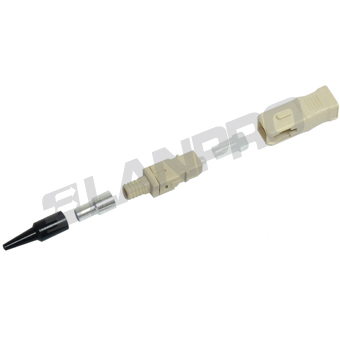

SC stands for Subscriber Connector- a general purpose push/pull style connector developed by NTT. SC has an advantage in keyed duplexibility to support send/receive channels. SC connectors are frequently used for newer network applications. The SC is a snap-in connector that is widely used in singlemode systems for its performance. The SC connector is also available in a duplex configuration. They offer low cost, simplicity, and durability. SC connectors provide for accurate alignment via their ceramic ferrules. The square, snap-in connector latches with a simple push-pull motion and is keyed. They feature a 2.5 mm ferrule and molded housing for protection. Typical matched SC connectors are rated for 1000 mating cycles and have an insertion loss of 0.25 dB. |
|||
HOW TO ORDER |
LP-FXXTMMBCHY, Fiber Optic Connectors LP-F LanPro Optical XX Fiber Solutions Code 11: Fiber Optic Connector T Connector Type A: ST Pre Angled C: FC/PC Pre Angled Typical type D: FC/PC Pre Angled One Piece Type I: FC/APC Pre-Angled 8º F: SC Pre Angled H: SC Pre Angled Duplex Type J: SC/APC Pre angled 8º One Piece Type 5: SC II/APC Pre Angled 8º One Piece Type L: LC Simplex P: LC Duplex Type Q: LC/APC Simplex Pre Angled 8º M: MTRJ Female N: MTRJ + Guide Pin Male R: MTRJ II S: MTRJ II + Guide Pin 1: LC II Simplex 2: LC II Duplex 3: LC II Simplex Square-Flange 4: LC II Duplex Square-Flange 6: SC II Simplex 7: SC II Duplex 8: SC II Simplex Square-Flange 9: SF II Duplex Frange MM MODE/Polish Type 1: MM PC polish 2: SM PC Polish 3: SM SPC Polish 4: SM UPC Polish 5: SM APC Polish B Cable Boot Type 1: For 3.0mm cable 2: For 0.9mm cable 3: For 2.0mm cable (Only for MTRJ & LC) 4: For 1.8 mmcable Minizip 5: For both 3.0 mm and 0.9mm kit 6: For both 3.0 mm and 2.0mm kit C Boot Color 1: Black 2: Red 3: Yellow 4: Green 5: Blue 6: Ivory 7: Black and Red 8: White H Housing 1: Black 2: Red 3: Yellow 4: Green 5: Blue 6: Ivory 7: Black and Red 8: White 9: Metal Y Yoke 1: Black 2: Red 3: Yellow 4: Green 5: Blue 6: Ivory 7: Black and Red 8: White Blank= None or 0 if there is no Yoke and a clip for duplex e.g. Simplex LP-F11F15168, Fiber Optic Connector SC Simplex Type Multimode 62.5/125 PC Polish Ivory Housing with both 3mm and 0.9 mm Black Boots, and White Yoke. LP-F11F25568, Fiber Optic Connector SC Simplex Type Singlemode 9/125 PC Polish Blue Housing with both 3mm and 0.9 mm Blue Boots and White Yoke. e.g. Duplex LP-F11H15758, Fiber Optic Connector SC Duplex Type Multimode 62.5/125 PC Polish Ivory Housing with 2x3.0mm and 2x0.9mm Black and 2x3.0mm and 2x0.9 red Boots. LP-F11H25558, Fiber Optic Connector SC Duplex Type Singlemode 9/125 PC Polish Blue Housing with both 3mm and 0.9 mm Blue Boots. |
||
|
