The LP-OC52XX is a family of Fiber Optic Cables that the industry calls an Outside Plant Cable, with corrugated steel tape armored for underground conduits, ducts or in aerial/lashed deployment, for outdoor applications.

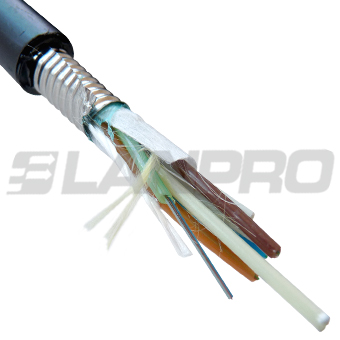

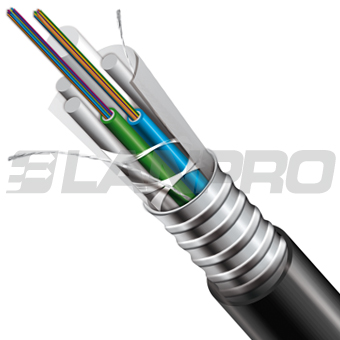

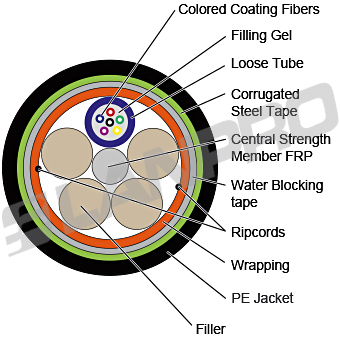

Loose tube style, optical fiber cable light armored with corrugated steel tape, with non-metallic central strength member of FRP and dry water blocking tape with ripcord. The cable is protected by a black colored PE oversheath. The tubes contain optical single-mode or multimode fibers color coded as per color coding scheme embedded in gel.
|
|||
| FEATURES |
* Interbuilding voice or data communication backbones.
* Campus Lan, (CAN). * Designed for rough conditions. * Outdoor applications. * Usable lashed Aerial, ducted or direct burial. * Junction type Communicaction Systems. * Subscriber network systems. * Local area network systems. * Usable on long-haul applications. * Loose tube gel-filled construction for superior fiber protection. * UV- and moisture-resistant design. * Termite and rodent resistant construction. * Dry Water Blocking tape with Ripcord. * MDPE Jacket under request. |
||
| HOW TO ORDER |
LP-OC512CCC4FF LP-OC52: Fiber Optical Cable with Loose Tubes, Single PE Jacket, corrugated steel tape, central strength member FRP, Dry water Blocking tape and Ripcord.
CCC Fiber Count: 002-072.
4 Buffer Construction: Multi-fiber loose Tube (Gel- Filled) FF: Fiber Type: QL: Multi-Mode-62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-Mode-50/125-IEC 60793-2-10 type A1a.1 ZC: Single-Mode-9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC52120064TP: Fiber Optical Cable with 6 multimode OM3 ClearCurve® 50/125 fibers, Loose Tubes, Single PE Jacket, corrugated steel tape, central strength member FRP, Dry water Blocking tape and Ripcord. LP-OC52120124TP: Fiber Optical Cable with 6 multimode OM3 ClearCurve® 50/125 fibers, Loose Tubes, Single PE Jacket, corrugated steel tape, central strength member FRP, Dry water Blocking tape and Ripcord. |
||
