The LP-OC33XX is a family of cables designed for Fiber-To-The-Home (FTTH) Aerial Outdoor environment applications.

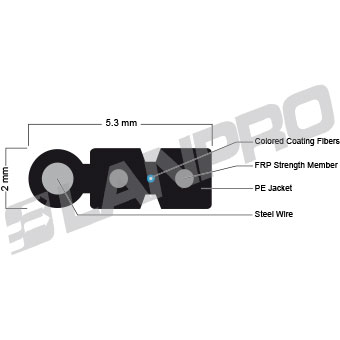

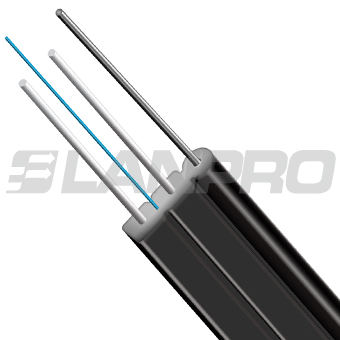

The optical fibers are placed in the center. Two FRP strength members are placed at the sides. A steel wire is added for self support enabling it to be used in outdoor aerial Fiber-To-The-Home (FTTH) applications.
The number of fibers can be 1, 2, 4 or 6 of the Multimode or Singlemode Type as per customer requirements.
LanPro uses only the finest fiber strands brands in the world. Usually from Corning® but also from Prysmian® or other recognized brands depending on the availability at the moment of the production.
|
|||
| FEATURES |
* Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission properties.
* Simple structure, light weight, high tensile strength. * 1, 2, 4 or 6 Fibers. * Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber. * A steel wire is added for self support enabling it to be used in outdoor aerial Fiber To The Home (FTTH) applications. * Novel groove design, easily strip and splice, simplified installation and maintenance. |
||
| HOW TO ORDER |
LP-OC3313CCC7FF
LP-OC33: Drop Fiber Optical Cable FTTH (Fiber-to-the-home) with Colored coating fibers, LSZH-rated Jacket, self supporting, central steel wire, Bow type, Two Strength members FRP.
13: Jacket Suffix: Dry water blockCCC: Fiber Count: 001 - 006 7: Buffer Construction: Colored Coating Fibers FF: Fiber Type: QL: Multi-Mode-62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-Mode-50/125-IEC 60793-2-10 type A1a.1 ZC: Single-Mode-9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC33130017ZF Drop Fiber Optical Cable FTTH (Fiber-to-the-home) with one (1) singlemode ITU-T G.657.A1/B1 Colored coating fiber, LSZH-rated Jacket, self supporting, central steel wire, Bow type, Two parallel strength members FRP in a 2 km length wooden drum. LP-OC33130017QL Drop Fiber Optical Cable FTTH (Fiber-to-the-home) with one (1) multimode 62.5/125 IEC 60793-2-10 Type A1b Colored coating fiber, LSZH-rated Jacket, self supporting, central steel wire, Bow type, Two parallel strength members FRP in a 2 km length wooden drum. |
||
