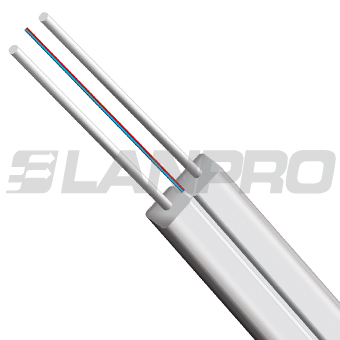

The LP-OC32XX is a family of Fiber Optic Cables that the industry called a FTTH (Fiber-to-the-home) Drop Bow Type with 1, 2, 4 or 6 colored coating fibers.

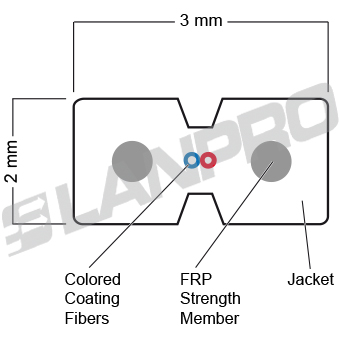

The optical fibers are placed in the center. Two FRP strength members are placed on the two sides. The cable sheath is LSZH classified.
|
|||
| FEATURES |
* Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
* Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber. * Simple structure, light weight, high tensile strength and Novel groove design, easily strip and splice for simplified installation and maintenance. * Low smoke, zero halogen and flame retardant sheath, environmental-friendly, and with excellent safety characteristics for Indoor use. |
||
| HOW TO ORDER |
LP-OC3213CCC7FF
LP-OC32: All dielectric Drop Fiber Optical Cable with Colored Coating Fibers, LSZH Jacket, Two Strength members FRP, Bow Type, FTTH (Fiber to the home).
CCC Fiber Count: 001-006 7 Buffer Construction: Colored Coating Fibers. FF Fiber Type: QL: Multi-Mode-62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-Mode-50/125-IEC 60793-2-10 type A1a.1 ZC: Single-Mode-9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC32130017ZF All dielectric Drop Fiber Optical Cable with one (1) singlemode ITU-T G657.A1/B1 Colored Coating Fiber, LSZH Jacket, Two Strength members FRP, Bow Type, FTTH (Fiber to the home).
LP-OC32130017QL All dielectric Drop Fiber Optical Cable with one (1) Multimode 62.5/125 IEC 60793-2-10 Type A1b Colored Coating Fiber, LSZH Jacket, Two Strength members FRP, Bow Type, FTTH (Fiber to the home).
|
||
