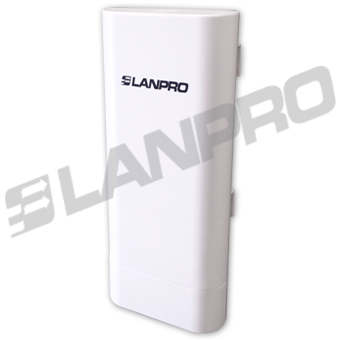

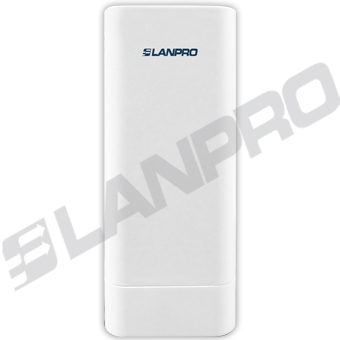

LP-1540ai

HIGH POWERED 300 MBPS ACCESS POINT FOR THE 2.4 GHZ WIFI BAND FOR OUTDOOR SERVICE, POE POWERED WITH MULTIPLE PHYSICAL AND VIRTUAL INTERFACES THAT SUPPORTS VLAN AND HAS AN EIRP OF 27DBM (0.5W).





The LP-1540ai is a High Powered 300 Mbps Access Point for the 2.4 GHz WiFi band for Outdoor service, PoE powered with Multiple Physical and Virtual interfaces that supports VLAN which is very convenient for delivering services of Data, Voice and Video Streaming.

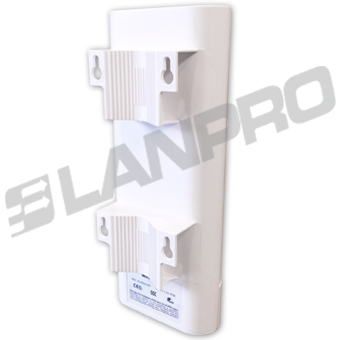

The LP-1540ai was designed to be usable in a friendly manner and was beautifully designed for installation on roofs, resulting in a superb solution for delivering WiFi service to ample outdoor spaces with the added feature that lets you create VLANs.

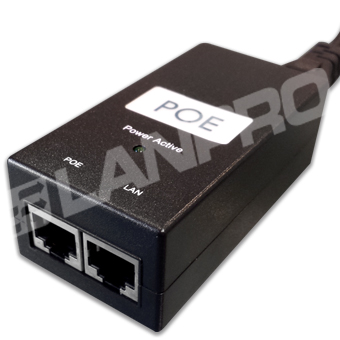

The LP-1540ai supports Passive Power Over Ethernet (PoE), which allows for powering it through the data cable.

This excellent solution uses the IEEE802.11 11b, 11g, 11b/g, 11b/g/n Standards and a air transmission rate of 300 Mbps for equipment compliant with the 802.11n standard, in the 2412 MHz ~ 2484 MHz range of frequencies (Channels 1 ~ 14).

This radio uses a technologically leading chipset and an integrated directional antenna with a 14dBi gain for ample coverage and distance. LanPro has created a set of templates that facilitates the setup of this versatile radio in various configurations that take advantage of its functionalities, and can be downloaded from LP-1540ai downloads and also come included in the CD supplied with the unit. These templates are regularly updated to facilitate our clients work in a easy, fast and effective way of using the equipment.

This equipment supports the creation of virtual interfaces over physical interfaces like the two independent accesses from multi-AP’s over a single wireless interface.

One of the most important advantages of the LP-1540ai is that it lets you use it in a very simple manner or as a complex and efficient radio due to the new software embedded in it to give you ample flexibility, including the creation of virtual
interfaces that can be controlled with specific rules. You will be able to use VLANs, QoS, Filtering, DHCP technologies and configure the LP-1540ai to perform timed routine tasks; our new software has no boundaries for the creation of a perfect
radio and its services. Let our new technology of (“Set it by yourself”) and our pre-configured templates drive you on the road to a perfect service deployment.

The LP-1540ai has an excellent reception sensitivity:
  • IEEE 802.11b11Mbps ≤ -84dBm
  • IEEE 802.11g 54Mbps ≤-71dBm
  • IEEE 802.11n 2.4GHz
  • HT20 ≤ -67dBm
  • HT40 ≤ -64dBm
And bandwidths of 20 or 40MHz.

Also has a High Power Output EIRP of 27dbm±1.5dbm.

The LP-1540ai prioritizes Online Game traffic, Voice over IP(VoIP) and multimedia streams with the Intelligent QoS function, for both wired and wireless connections.

In the same manner, it supports Wireless Encryption security of 64/128/152bit WEP encryption; PA-PSK/WPA2-PSK WPA/WPA2 security mechanism. Supports the following Ciphering schemes: CCMP (AES), TKIP, TKIP and CCMP (AES) or AUTO.



  FEATURES
* 27dbm±1.5dbm EIRP Power output.

* IEEE802.11 b, g and n Standards compliant.

* Supports high air Data rates up to 300 Mbps when in the IEEE802.1n mode with two air streams.

* High Reception sensitivity with a peak of 67dBm±1.5dBm Mbps and EIRP of output transmit power (500mW) for an ample WiFi coverage.

* Supports the creation of multiple Logical Interfaces.

* Provides MAC Access Control.

* Supports advance routing settings.

* Provides multiple SSIDs.

* VLAN Support for some Interfaces.

* Supports via WEB configuration.

* Supports advance Firewall Rules for physical and logical interfaces (GLOBAL AND INDIVIDUAL).

* Firmware update via browser.

* Basic Diagnostic support on Firmware.

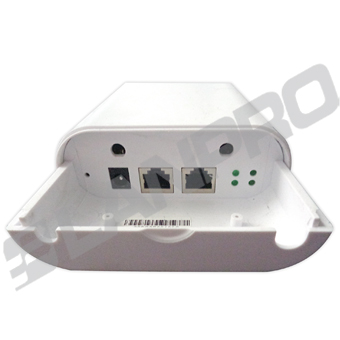

* Provides an Ethernet Interface of 10/100 Mbps and supports automatic MDI/MDIX.

* Advanced DHCP-Server, DNS Features and NAT Firewalls.

* Supports LAN Host names Table.

* Firmware includes (load, Traffic, Wireless and Connections) Dashboard for monitoring.

* Supports Execution of Scheduled Tasks.

* Supports Upgrade Boot Loader.

* Supports air-rate automatic speed.

* Supports MAC Address filtering encryption; wireless security turn on and off, WEP 64/128/152bit encryption; and PA-PSK/WPA2-PSK WPA/WPA2, by reinforcing security mechanisms for data transmission.

* Includes a DHCP Server.

* Supports QoS, for a better network service.

* Supports WMM, and delivers a better audio with your video stream.

* Suports the Spanning Tree Protocol 802.3d.


  HOW TO ORDER LP-1540ai High Powered 300 Mbps Access Point for the 2.4 GHz WiFi band for Outdoor service, PoE powered with Multiple Physical and Virtual interfaces that supports VLAN and has an EIRP of 27dBm (0.5W).
