The LP-OC10XX is family of Fiber optic cables that the industry call an Outside Plant Cable All Dielectric.

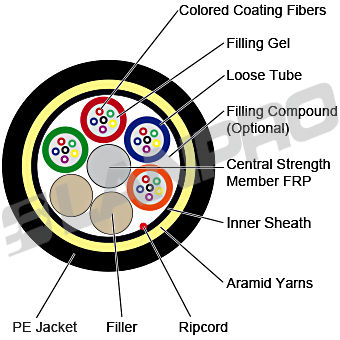

Loose tube style, optical fiber cable with FRP central strength member and peripheral Aramid yarns and Black polyethylene sheath suitable for overhead installation as pole-to-pole or pole-to-premises. Tubes contain up to 8 Fibers color coded as per color coding scheme.
|
|||
| FEATURES |
* Loose tube gel-filled construction for superior fiber protection.
* UV- and moistureresistant design.
* Rodent-resistant construction. * Dry Water Block cable core for ease of handling.
* All dielectric Self Supporting Optical Cable for selectable spans greather than 150m.
Applications:
* Usable in Power Lines.
* Pole to Pole or pole to premises. |
||
| HOW TO ORDER |
LP-OC1012CCC4FFS LP-OC10: All dielectric Self Supporting Optical Cable for long span, greather than 150m, with Loose Tubes, Double PE Jacket, peripheral Aramid® yarns with Central Strenght member FRP and Ripcord. 12: Jacket Suffix: Dry water block and Ripcord CCC: Fiber Count: 002 - 024 4: Buffer Construction: Multi-fiber loose Tube (Gel- Filled). FF: Fiber Type: QL: Multi-Mode-62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-Mode-50/125-IEC 60793-2-10 type A1a.1 ZC: Single-Mode-9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. S: Span: Greather than 150 m. Examples: LP-OC10120084QL175 All dielectric self supporting Optical Cable for 175m span, with 8 multimode OM1 62.5/125-IEC 60793-2-10 type A1B fibers, Loose Tubes, Double PE Jacket, peripheral Aramid® yarns with Central Strenght member FRP and Ripcord. LP-OC10120084ZC200 All dielectric self supporting Optical Cable for 200m span, with 8 singlemode G.652.D, 9/125, full spectrum, low water peak fibers, Loose Tubes, Double PE Jacket, peripheral Aramid® yarns with Central Strenght member FRP and Ripcord. |
||
