The LP-OC22XX is a family of Fiber Optic Cables that the industry called an Aerial Outdoor Optical Cable, made sturdy enough for aerial deployment.

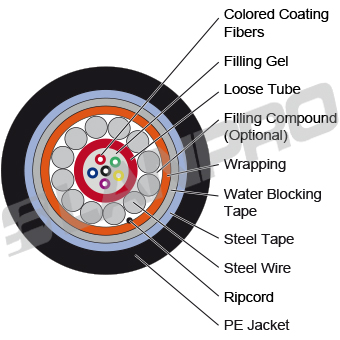

These cables are constructed by central Loose Tubes, armor with a layer of galvanized steel wires, bonded steel tape, waterproof tape wrapping and is protected by a black external PE jacket UV- and moistureresistant design.
|
|||
| FEATURES |
* Central Loose tube Gel-filled construction for superior fiber protection.
* UV- and moistureresistant design. * Dry Water Block for ease of handling. * Waterproof Tape. Applications
* Usable in aerial installations.
* Long-haul communication systems. * Subscriber network systems. * Local area network systems. |
||
| HOW TO ORDER |
LP-OC2212CCC4FF
LP-OC22: Loose Tubes, Single PE Jacket, layer of galvanized steel wires strength
member, bonded steel tape, water blocking tape and Ripcord.
01 Jacket Suffix: Dry Water Block with RipcordCCC Fiber count: 002-012 4 Buffer construction: Multi-fiber loose tube (Gel- filled). FF Fiber type: QL: Multi-mode-62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-Mode-50/125-IEC 60793-2-10 type A1a.1 ZC: Single-mode-9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC22120084QL Fiber Optical Cable with 8 multimode 62.5/125-IEC 60793-2-10 Type A1b fibers, central Loose Tubes, Single PE Jacket, layer of galvanized steel wires strength member, bonded steel tape, water blocking tape and Ripcord. LP-OC22120084ZC Fiber Optical Cable with 8 singlemode 9/125, full spectrum, low water peak ITU-T G.652.D/B1.3 fibers, central Loose Tubes, Single PE Jacket, layer of galvanized steel wires strength member, bonded steel tape, water blocking tape and Ripcord. |
||
