The LP-OC19XX is a family of Fiber Optic Cables that the industry called an Outside Plant Cable for underground conduits or ducts or in aerial/lashed deployment.

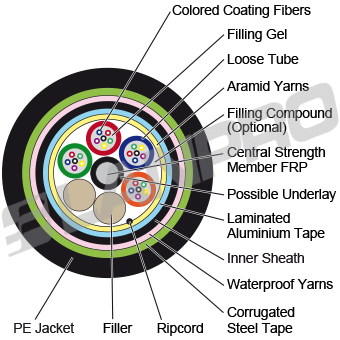

These cables are constructed by Loose Tubes, armor with corrugated steel tape for rodent and crushing protection, Central strength member of FRP and moisture barrier inner sheathed, an internal PE jacket, laminated aluminum tape to increase the crushing strength and finally is protected by a black external PE jacket UV- and moisture- resistant design.
|
|||
| FEATURES |
* Loose tube gel-filled construction for superior fiber protection.
* UV- and moisture-resistant design. * Rodent-resistant construction. * Dry Water Block for ease of handling.
Applications
* Usable in Direct burial or Aerial.
* Long-haul communication systems. * Junction communication systems. * Subscriber network systems. * Local area network systems. |
||
| HOW TO ORDER |
LP-OC1912CCC4FF LP-OC19: Loose Tubes, Double PE Jacket, Central Strength member FRP, laminated aluminum tape, corrugated steel tape and Ripcord. 12 Jacket Suffix: Dry Water Block with Ripcord CCC Fiber count: 002-144 4 Buffer construction: Multi-fiber loose Tube (Gel-Filled). FF Fiber type: QL: Multi-mode-62.5/125-IEC 60793-2-10 type A1b. BI: Multi-mode-50/125-IEC 60793-2-10 type A1a.1 ZC: Single-mode-9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC19120084QLFiber Optical Cable with 8 multimode 62.5/125-IEC 60793-2-10 Type A1b fibers, Loose Tubes, Double PE Jacket, Central Strength member FRP, laminated aluminum tape, corrugated steel tape and Ripcord. LP-OC19120084ZC Fiber Optical Cable with 8 singlemode 9/125, full spectrum, low water peak ITU-T G.652.D/B1.3 fibers, Loose Tubes, Double PE Jacket, Central Strength member FRP, laminated aluminum tape, corrugated steel tape and Ripcord. |
||
