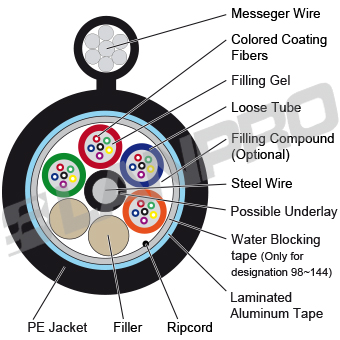

The LP-OC08XX is a family of Fiber Optic Cables that the industry called an Outside Plant Cable, Loose Tubes, Figure 8 armored with steel wire/stranded central strength member and moisture barrier inner sheath incorporating steel messenger wire suitable for overhead installation as pole-to-pole or pole-to-premises.
|
|||
FEATURES |
* Loose tube gel-filled construction for superior fiber protection.
* UV- and moisture-resistant design. * Dry Water Block for ease of handling. * Figure 8. * Central steel wire/stranded member for strength. * Laminated aluminum tape for strength. Applications:
* Usable for Aerial installation.
* Long-haul communication systems. * Junction communication systems. * Subscriber network systems. * Local area network systems. |
||
HOW TO ORDER |
LP-OC0812CCC4FF LP-OC08: Loose Tubes, Single PE Jacket, self supporting, Figure 8, Central steel wire/stranded, messenger wire and Laminated Aluminum tape. 12: Jacket Suffix: Dry Water Block. CCC: Fiber Count: 002-144 4: Buffer Construction: Multi-fiber loose Tube (Gel- Filled). FF: Fiber Type: QL: Multi-Mode-62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-Mode-50/125-IEC 60793-2-10 type A1a.1 ZC: Single-Mode-9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC08120084QL Fiber Optical Cable with 8 multimode 62.5/125 - IEC 60793-2-10 Type A1b fibers, Loose Tubes, Single PE Jacket, self supporting, Figure 8, Central steel wire/stranded, messenger wire, Laminated Aluminum tape and Ripcord. LP-OC08120084ZC Fiber Optical Cable with 8 singlemode 9/125 - Full spectrum, low water peak, ITU-T G.652.D/B1.3 fibers, Loose Tubes, Single PE Jacket, self supporting, Figure 8, Central steel wire/stranded, messenger wire, Laminated Aluminum tape and Ripcord. |
||
