The LP-OC20XX is a family of Fiber Optic Cables that the industry called an Outside Plant Cable for underground conduits or ducts or in aerial/lashed deployment.

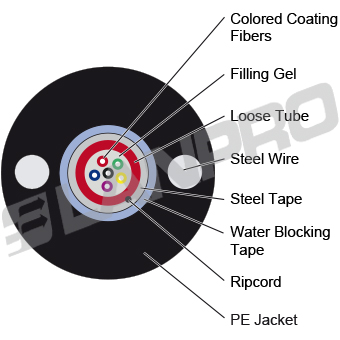

These cables are constructed by Loose Tubes, armor with two steel wires strength elements, steel tape to increase the crushing strength and finally is protected by a black external PE jacket UV - and moisture- resistant design.
|
|||
| FEATURES |
* Loose tube gel-filled construction for superior fiber protection.
* UV- and moistureresistant design. * Rodent-resistant construction. * Dry Water Block for ease of handling. Applications
* Usable in ducts, direct burial or aerial installation.
* Long-haul communication systems. * Subscriber network systems. * Local area network systems. |
||
| HOW TO ORDER |
LP-OC2012CCC4FF
LP-OC20: tubes, Single PE Jacket, armored with two steel wires strength members, steel tape and Ripcord.
12 Jacket suffix: Dry Water Block with Ripcord. CCC Fiber Count: 002-012. 4 Buffer Construction: Multi-fiber loose Tube (Gel-Filled). FF Fiber Type: QL: Multi-mode: 62.5/125-IEC 60793-2-10, type A1b. BI: Multi-mode: 50/125-IEC 60793-2-10, type A1a.1 ZC: Singlemode: 9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC20120084QL Fiber Optical Cable with with 8 multimode 62.5/125-IEC 60793-2-10 Type A1b fibers, Loose tubes, Single PE Jacket, armored with two steel wires strength members, steel tape and Ripcord. LP-OC20120084ZC Fiber Optical Cable with with 8 singlemode 9/125, full spectrum, low water peak ITU-T G.652.D/B1.3 fibers, Loose tubes, Single PE Jacket, armored with two steel wires strength members, steel tape and Ripcord. |
||
