The LP-OC18XX is a family of Fiber Optic Cables that the industry called an Outside Plant Cable for underground conduits or ducts or in aerial/lashed deployment.

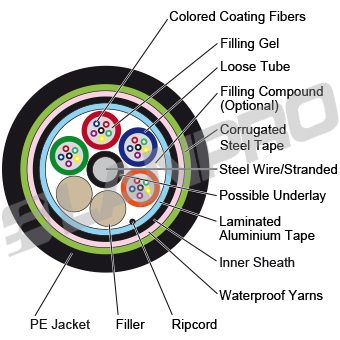

These cables are constructed by Loose Tubes, armor with corrugated steel tape for rodent and crushing protection, Central strength member of steel wire/stranded and moisture barrier inner sheathed, an internal PE jacket, laminated aluminum tape to increase the crushing strength and finally is protected by a black external PE jacket UV- and moisture- resistant design.
|
|||
| FEATURES |
* Loose tube gel-filled construction for superior fiber protection.
* UV- and moisture-resistant design. * Rodent-resistant construction. * Dry Water Block for ease of handling. Applications * Usable in Direct burial or Aerial. * Long-haul communication systems. * Junction communication systems. * Subscriber network systems. * Local area network systems. |
||
| HOW TO ORDER |
LP-OC1812CCC4FF LP-OC18: Loose Tubes, Double PE Jacket, Central steel wires/stranded, laminated aluminum tape, corrugated steel tape and Ripcord. 12: Jacket Suffix: Dry Water Block with Ripcord. CCC: Fiber Count: 002-144. 4 Buffer construction: Multi-fiber loose tube (Gel-filled). FF Fiber type: QL: Multi-mode-62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-mode-50/125-IEC 60793-2-10 Type A1a.1 ZC: Single-mode-9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC18120084QL Fiber Optical Cable with 8 multimode 62.5/125-IEC 60793-2-10 Type A1b fibers, Loose Tubes, Double PE Jacket, Central steel wires/stranded, laminated aluminum tape, corrugated steel tape and Ripcord. LP-OC18120084ZC Fiber Optical Cable with 8 singlemode 9/125, full spectrum, low water peak ITU-T G.652.D/B1.3 fibers, Loose Tubes, Double PE Jacket, Central steel wires/stranded, laminated aluminum tape, corrugated steel tape and Ripcord. |
||
