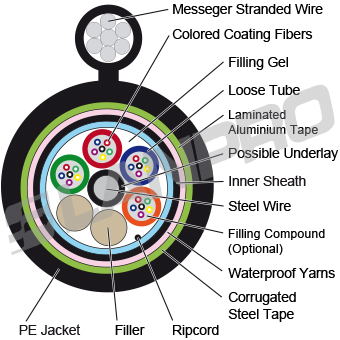

The LP-OC07XX is a family of Fiber Optic Cables that the industry called an Outside Plant Cable, Loose Tubes, Figure 8 armored with steel wire/strand central strength member and moisture barrier inner sheath incorporating steel messenger wire suitable for overhead installation as pole-to-pole or pole-to-premises.
|
|||
| FEATURES |
* Loose tube gel filled construction for superior fiber protection.
* UV- and moisture-resistant design. * Dry Water Block for ease of handling. * Armored with steel wire/strand central strength member. * Figure 8. * Messenger Wire. * Laminated aluminum tape and corrugated steel tape for strength. Applications:
* Usable for Aerial installation.
* Long-haul communication systems. * Junction communication systems. * Subscriber network systems. * Local area network systems. |
||
| HOW TO ORDER |
LP-OC0712CCC4FF LP-OC07: Fiber Optical Cable with Loose Tubes, Double PE Jacket, self supporting, Figure 8, central steel wire/strand, messenger wire, laminated aluminum tape for strength. 12 Jacket Suffix: Dry Water Block with Ripcord CCC Fiber Count: 2-144 4 Buffer Construction: Multi-fiber loose Tube (Gel-Filled) FF Fiber Type: QL: Multi-Mode 62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-Mode 50/125-IEC 60793-2-10 type A1a.1 ZC:Single-Mode 9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC07120084QL Fiber Optical Cable with 8 Multimode 62.5/125- IEC 60793-2-10 type A1b fibers, Loose Tubes, Double PE Jacket, self supporting, Figure 8, central steel wire/strand, messenger wire, laminated aluminum tape for strength, Dry Water Block and Ripcord. LP-OC07120084ZC Fiber Optical Cable with 8 Singlemode 9/125- full sprectrum, low water peak, ITU-T G.652.D/B1.3 fibers, Loose Tubes, Double PE Jacket, self supporting, Figure 8, central steel wire/strand, messenger wire, laminated aluminum tape for strength, Dry Water Block and Ripcord. |
||
