The LP-OC02XX is a family of Fiber Optic Cables that the industry calls an Outside Plant Cable, made sturdy enough for laying directly buried or in underground conduits or ducts or in aerial/lashed deployment.

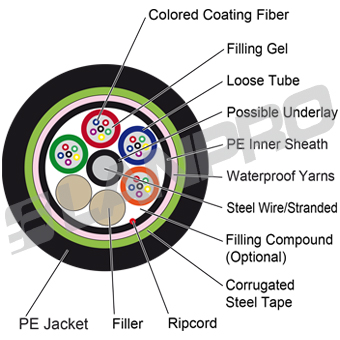

The LanPro Loose tube (gel-filled) Fiber Optic cables, with metallic central strength member of steel wire/stranded and moisture barrier inner sheathed is protected by a corrugated steel armoring and black PE oversheath for protection against mechanical damage and termite or rodent attack, suitable for direct burial or aerial application.
|
|||
FEATURES |
* Loose tube gel filled construction for superior fiber protection.
* UV- and moisture-resistant design. * Rodent-resistant construction. * Dry Water Block for ease of handling. * Steel wire/strand central strength member. Applications:
* Usable in Direct burial or Aerial.
* Long-haul communication systems. * Junction communication systems. * Subscriber network systems. * Local area network systems. |
||
HOW TO ORDER |
LP-OC0212CCC4FF LP-OC02: Double PE jacket, Central steel wire/strand and Corrugated Steel Tape Cable. 12: Jacket Suffix: Dry Water Block and Ripcord. CCC: Fiber Count: 002-144. 4: Buffer Construction: Multi-fiber loose Tube (Gel Filled). FF: Fiber Type: QL: Multi-Mode-62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-Mode-50/125-IEC 60793-2-10 type A1a.1 ZC: Single-Mode-9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC02120084QL Fiber Optical Cable with 8 multimode 62.5/125 IEC60793-2-10 type A1b fibers, Loose Tubes, Double PE jacket, Central steel wire/strand, Corrugated Steel Tape, Dry Water Block and Ripcord. LP-OC02120084ZC Fiber Optical Cable with 8 singlemode 9/125, full spectrum, low water peak, ITU-T G.652D/B1.3 fibers, Loose Tubes, Double PE jacket, Central steel wire/strand, Corrugated Steel Tape, Dry Water Block and Ripcord. |
||
