The LP-OC47XX is family of Fiber optic cables that the industry call an Outside Plant Cable for underground conduits, ducts or in aerial/lashed deployment.

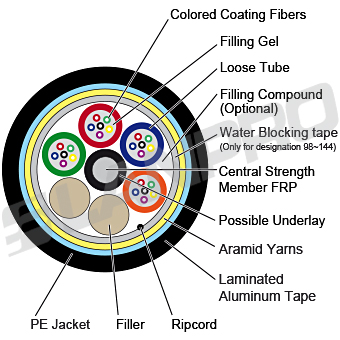

Loose tube style, optical fiber cable with non-metallic central strength member of FRP and peripheral strength members with moisture barrier inner sheathed and Laminated Aluminum Tape. Cable protected by a black PE oversheath, suitable for duct or aerial application. Tubes contain optical singlemode or multimode fibers color coding scheme.
|
|||
| FEATURES |
* Loose tube gel-filled construction for superior fiber protection.
* UV- and moisture-resistant design. * Laminated Aluminum Tape. * Dry Water Block cable core for ease of handling. Applications * Interbuilding voice or data communication backbones. * Outdoor applications. * Long-haul communication system. * Junction communication systems. * Subscriber network systems. * Local area network systems. |
||
| HOW TO ORDER |
LP-OC4712CCC4FF LP-OC47: Fiber Optical Cable with Loose tubes, single PE jacket, central strength member of FRP, laminated aluminum tape and Ripcord. 12 Jacket Suffix: Dry Water Block Cable Core. CCC Fiber count: 2-144. 4 Buffer construction: Multi-fiber loose Tube (Gel-Filled). FF Fiber type: QL: Multi-mode-62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-Mode-50/125-IEC 60793-2-10 type A1a.1 ZC: Single-mode-9/125-Full spectrum, low water peak single-mode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC47120044QL: Fiber Optical Cable, with 4 multimode OM1 62.5/125-IEC 60793-2-10 type A1B fibers, Loose Tubes, single PE jacket, central strength member of FRP, laminated aluminum tape, dry water block cable core and Ripcord. LP-OC47120044ZC: Fiber Optical Cable, with 4 singlemode G.652.D, 9/125, full spectrum, low water peak fibers, Loose Tubes, single PE jacket, central strength member of FRP, laminated aluminum tape, dry water block cable core and Ripcord. |
||
