The LP-OC17XX is a family of Fiber Optic Cables that the industry called an Outside Plant Cable for underground conduits or ducts or in aerial/lashed deployment.

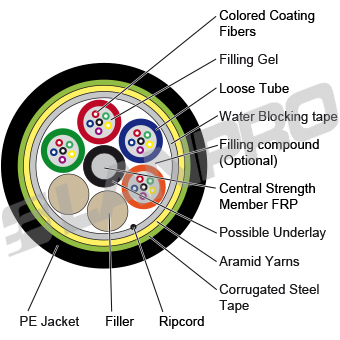

These cables are constructed by Loose Tubes, armor with corrugated steel tape for rodent a crushing protection, Central strength member of FRP and moisture barrier inner sheathed, protected by a black external PE jacket UV- and moisture- resistant design.
|
|||
FEATURES |
* Loose tube gel-filled construction for superior fiber protection.
* UV- and moisture-resistant design. * Corrugated Steel Tape. * Dry Water Block for ease of handling. Applications:
* Interbuilding voice or data communication backbones.
* Usable in Duct or Aerial. * Long-haul communication system. * Junction communication systems. * Subscriber network systems. * Local area network systems. |
||
HOW TO ORDER |
LP-OC1712CCC4FF LP-OC17: Loose Tube Single PE Jacket Fiber Optic Cable, with Light Armor, and FRP Strenght Member. CCC Fiber Count: 002-144. 4 Buffer Construction: Multi-fiber loose Tube (Gel-Filled). FF Fiber Type: QL: Multi-Mode-62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-Mode-50/125-IEC 60793-2-10 type A1a.1 ZC: Single-Mode-9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC17120044QL Fiber Optical Cable with 4 multimode 62.5/125-IEC 60793-2-10 Type A1b fibers, Loose Tubes, Single PE Jacket, Central Strength member FRP, Dry Water Block, with corrugated steel tape and Ripcord. LP-OC17120044ZC Fiber Optical Cable with 4 singlemode 9/125, full spectrum, low water peak ITU-T G.652.D/B1.3 fibers, Loose Tubes, Single PE Jacket, Central Strength member FRP, Dry Water Block, with corrugated steel tape and Ripcord. |
||
