The LP-OC15XX is a family of Fiber Optic Cables that the industry called an Outside Plant Cable for underground conduits or ducts or in aerial/lashed deployment.

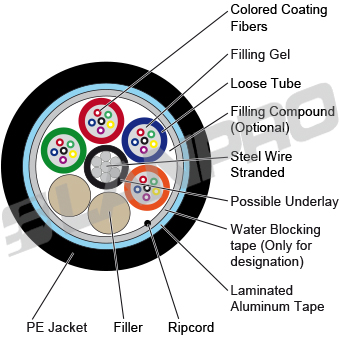

These cables are constructed by Loose Tubes, Central Steel wire/stranded strength member and moisture barrier inner sheathed, protected by a black external PE jacket UV- and moisture- resistant design.
|
|||
| FEATURES |
* Loose tube gel-filled construction for superior fiber protection.
* UV- and moisture-resistant design. * Dry Water Block. * Peripheral strength is provided by the aluminium tape when the fiber count is 98 to 144. * Steel wire Stranded Core central strength member. Applications:
* Interbuilding voice or data communication backbones.
* Installed in ducts, underground conduit or aerial/lashed. * Long-haul communication systems. * Junction Communication systems. * Subscriber network systems. * Local area network systems. |
||
| HOW TO ORDER |
LP-OC1512CCC4FF LP-OC15: Loose Tube Single Jacket Metallic Strenght Member Fiber Optic Cable. 12: Jacket Suffix: Dry Water Block. CCC: Fiber Count: 002-144 4 Buffer Construction: Multi-fiber loose Tube(Gel- Filled). FF Fiber Type: QL: Multi-Mode-62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-Mode-50/125-IEC 60793-2-10 type A1a.1 ZC: Single-Mode-9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC15120044QL Fiber Optical Cable with 4 multimode 62.5/125-IEC 60793-2-10 Type A1b fibers, Loose Tubes, Single PE Jacket, Steel wire Stranded Core central strength member, Dry Water Block and Ripcord. LP-OC15120044ZC Fiber Optical Cable with 4 singlemode 9/125, full spectrum, low water peak ITU-T G.652.D/B1.3 fibers, Loose Tubes, Single PE Jacket, Steel wire Stranded Core central strength member, Dry Water Block and Ripcord. |
||
