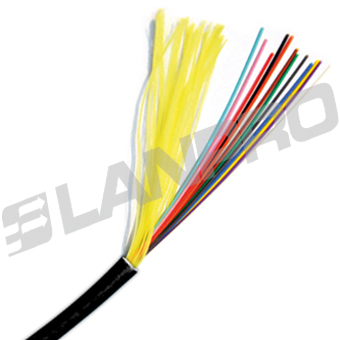

The LP-OC25XX Tiny™Series of Fiber Optic Indoor/Outdoor Cables are designed to meet the environmental requirements typical of outside plant cable and the flammability, fume and smoke requirements of premise applications. Due to the non-metallic construction, they may be installed in areas of high intensity electric fields (Ex. high voltage lines and in vicinity of high lightning density areas).
Whether for indoor or outdoor use LanPro’s Tiny™ Series eliminates the expensive and space-consuming interconnection points at the premises entrance and improves the system loss budget. Less splicing, less connectors, less losses!
Our indoor/outdoor cables are extremely efficient when used to directly connect equipment, data closets on any location or floor, in different buildings or to connect a manhole location to an equipment room.

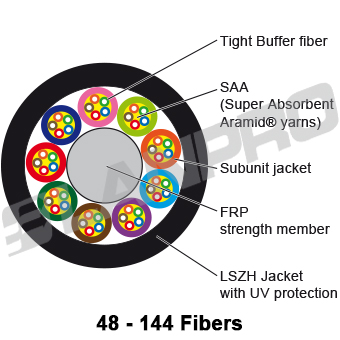

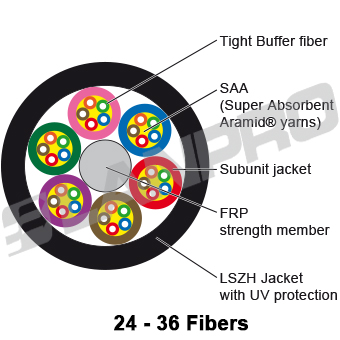

Our Tiny™ Series product (Indoor/Outdoor fiber optic cables) are tight buffer (900 μm) design, with constructions available in a variety of configurations and LSZH UV resistant to cover riser and plenum requirements for indoor cable and the ability to be run in duct aerial/lashed in the outdoor. (Not recommended for direct burial as is not shielded). Enormous reduction of structure cost by eliminating boxes, mechanical splices, etc., simplifying cable handling and improving flexibility with the choice of building entrances.
Tight buffer design allow direct termination of fibers with industry-standard connectors and techniques. Loose tube design provides more fiber protection in harsh outdoor environments and are readily spliced to other existing cables. Our cores are surrounded with dry water blocking technology as form of aramid water absorbent material to protect the cores and provide a clean fiber solution without the mess of gel infused traditional cables.
The use of SAA® (Super Absorbent Aramid®) Multi-Fiber Aramid® yarns found in the cable is an excellent means of producing a dry cable design. It can absorb several times its weight in water, and guarantees the performance even if the cable is exposed to humidity; plus it is ideal as a strength member (as ensures tension-resistance and long-term stability in the field).
For the technician,Tiny™ cable possesses the properties of small outer diameter, light-weight, easy to strip, low attenuation and mechanically soft.
A large number of Tiny™ cables fit inside a small diameter conduit.
|
|||
| FEATURES |
* Superabsorbent SAA® coated Aramid® Yarn-filled construction for superior fiber
protection. * Lightweight, flexible design simplifies installation. * Tight buffer provides individual fiber protection. * Tight buffered fibers are easy to handle and strip for field connectorization. * Good mechanical and temperature performance. * Good crush resistance water blocking and flexibility. * Lightweight, all dielectric self-supporting (ADSS) construction is ideal for use near electrical power lines. * LSZH or LSZH-3 or LSZHFR or LSHF FR rated jacket with UV protection for light outdoor use. Applications
* Used in Indoor/Light Outdoor cabling.
* FTTH Cable (Fiber to the home). * Inter-building voice or data communication backbones. * Installed in ducts, underground conduit or aerial/lashed. * Ideal for backbones and horizontal distribution on buildings. |
||
| HOW TO ORDER |
LP-OC2513CCC1FF LP-OC25: Tight Buffer Indoor/Light Outdoor Distribution Fiber Optical Cable, with black UV ready-LSZH rated jacket, Dry Water Block Cable Core, with superabsorbent coated Multi-Fiber Aramid® yarns for strength. 13 Jacket Suffix: Dry Water Block Cable Core. CCC Fiber Count: 002-144 1 Buffer Construction: Tight Buffer. FF Fiber Type: QL: Multi-Mode-62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-Mode-50/125-IEC 60793-2-10 type A1a.1 ZC: Single-Mode-9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC25130061TP: 6 Tight Buffer fibers multimode OM3, Indoor/Light Outdoor Distribution Fiber Optical Cable, with black UV ready-LSZH rated jacket, Dry Water Block Cable Core, with superabsorbent coated Multi-Fiber Aramid® SAA® yarns for strength. LP-OC25130061TG: 6 Tight Buffer fibers multimode OM4, Indoor/Light Outdoor Distribution Fiber Optical Cable, with black UV ready-LSZH rated jacket, Dry Water Block Cable Core, with superabsorbent coated Multi-Fiber Aramid® SAA® yarns for strength. |
||
