The LP-OC05XX is a family of fiber optic cables that the industry calls an Outside Plant Cable for underground conduits or ducts or in aerial/lashed deployment for Outdoor applications.

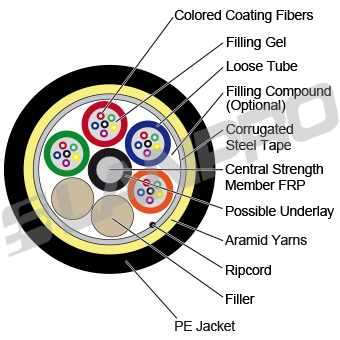

Loose tube style, optical fiber cable with non-metallic central strength member of FRP and peripheral strength members and polyethylene sheath suitable for duct or aerial installation in area with high incidence of lightning or exposure to high voltage. Tubes contain optical singlemode or multimode fibers color coded as per color coding scheme.
|
|||
| FEATURES |
* Loose tube gel-filled construction for superior fiber protection.
* UV- and moisture-resistant design. * Gel Water Block cable core for better water blocking. (Optional). * Central strength member made of fiber reinforced plastic (FRP). * Fully dielectric construction for use in high - voltage installations. * With Aramid® fiber peripheral reinforcement. * All dielectric self supporting optical cable for up to 75m span. Applications
* Interbuilding voice, data or video communication backbones.
* Installed in ducts, underground conduit or aerial/lashed. * Outdoor applications. * Local Area Network Systems. * Fully dielectric construction for use in high - voltage installations. |
||
| HOW TO ORDER |
LP-OC0512CCC4FF LP-OC05: All dielectric self supporting Fiber Optical Cable for up to 75m span with Loose Tubes and single PE jacket, central strength member FRP, Peripheral Aramid® yarns, Dry Water Blocking Cable core and Ripcord.
12 Jacket Suffix: Dry water block and Ripcord.
CCC: Fiber Count: 002-144. 4: Buffer Construction: Multi-fiber loose Tube (Gel- Filled). FF Fiber Type: QL: Multi-Mode-62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-Mode-50/125-IEC 60793-2-10 type A1a.1 ZC: Single-Mode-9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC05120044QL: All dielectric self supporting Fiber Optical Cable for up to 75m span with 4 multimode OM1 62.5/125 - IEC 60793-2-10 type A1b Loose Tubes fibers and single PE jacket, central strength member FRP, Peripheral Aramid® yarns, Dry Water Blocking Cable core and Ripcord. LP-OC05120044ZC: All dielectric self supporting Fiber Optical Cable for up to 75m span with 4 singlemode 9/125, Full spectrum, low water peak ITU-T G.652.D/B1.3 Loose Tubes fibers and single PE jacket, central strength member FRP, Peripheral Aramid® yarns, Dry Water Blocking Cable core and Ripcord. |
||
