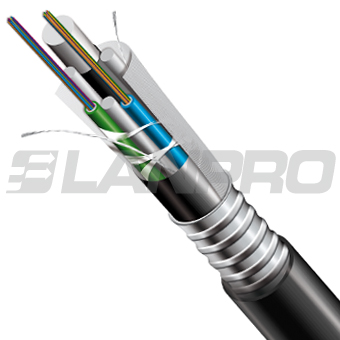

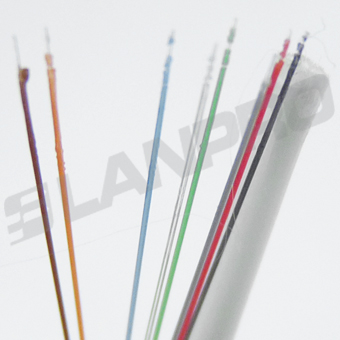

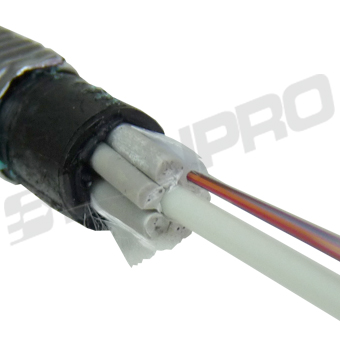

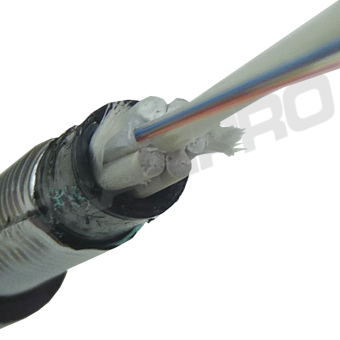

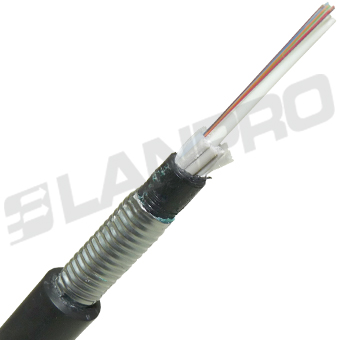

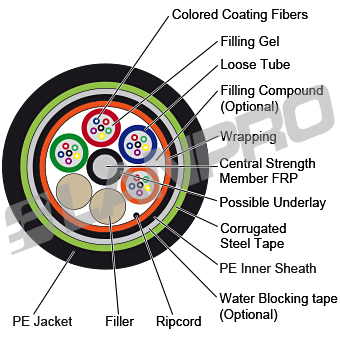

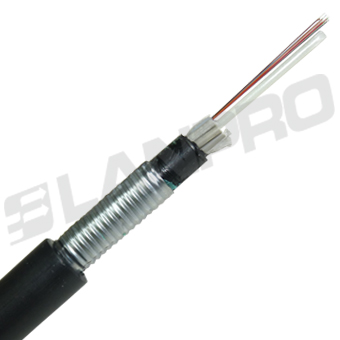

The LP-OC03XX is family of Fiber optic cables that the industry calls an Outside Plant Cable, made sturdy enough for laying directly buried or in underground conduits, ducts or in aerial/lashed deployment. Loose tube style, optical fiber cable with non-metallic central strength member of FRP and moisture barrier inner sheathed. Cable protected by a corrugated steel armoring and black PE over sheath for protection against mechanical damage and termite or rodent attack, suitable for direct buried or aerial application. Tubes contain optical single-mode or multimode fibers color coded as per color coding scheme. |
|||
| FEATURES |
* Loose tube gel-filled construction for superior fiber protection.
* UV- and moisture-resistant design. * Rodent-resistant construction. * GEL Water Block cable core for protection against moisture filling cavity between FRP strength member and inner PE sheath. (Optional). * One or Two Water block tapes are applied contra helically between corrugated steel tape and inner PE sheath. * Buffer tubes are stranded around the dielectric central strenght member using the
reverse oscillation or “S-Z”, stranding process.
* Two polyester yarn binders are applied contrahelically with sufficient tension to secure the buffer tubes layer to the dielectric central strength member without crushing the buffer tubes. These binders are non-hygroscopic, non wicking and dielectric with low shrinkage.
Applications
* Usable in Direct burial or Aerial.
* Long-haul communication systems. * Junction communication systems. * Subscriber network systems. * Local area network systems. |
||
| HOW TO ORDER |
LP-OC0312CCC4FF LP-OC03: Fiber Optical cable with Loose tubes, double PE jacket, central strength member of FRP, corrugated steel tape, dry water block cable core and Ripcord. 12 Jacket Suffix: Dry Water Block with Ripcord CCC Fiber Count: 002-144 4 Buffer Construction: Multi-fiber loose Tube (Gel- Filled). FF: Fiber Type: QL: Multi-Mode-62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-Mode-50/125-IEC 60793-2-10 type A1a.1 ZC: Single-Mode-9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC03120084QL: Fiber Optical cable with 8 multimode OM1 62.5/125 IEC 60793-2-10 Type A1b fibers, Loose tubes, double PE jacket, central strength member of FRP, corrugated steel tape, dry water block cable core and Ripcord. LP-OC03120084ZC: Fiber Optical cable with 8 singlemode ITU-T G.652.D B1.3, 9/125, Full spectrum, low water peak fibers, Loose tubes, double PE jacket, central strength member of FRP, corrugated steel tape, dry water block cable core and Ripcord. |
||
