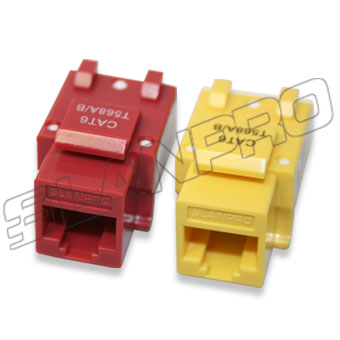

Modular Jacks CAT 6

7000 Series (Fully Shielded)

  The LanPro CAT 6 (Reliable 6) system is comprised of Reliable CAT 6 data cable, patch cords, patch panels and modular jacks. Lanpro has designed them specifically for high speed, bandwidth in excess of 300Mhz+, and easy installation. 568A/B compatible.

Our modular jacks are designed to match perfectly our Reliable 6 compatible products. All CAT 6 devices are very adaptable to customer changing requirements. Easy installation and maximun performance. All of them allow for universal termination, either T568A or T568B. To ensure a reliable conection, all CAT 6 jacks (couplers) are punchdown version, thus offering a higher level of performance.

Also available in HS (half shielded ) version and FS (full shielded) version. We do not recommend tooless version as field experience demonstrates that punch down styles are far more reliable. 7000 Series comes standard with a strain relief cover that secures a perfect cable termination.

Notice: All our couplers (Jacks) are also suitable for CAT 3 system cabling and the RJ11 is completely compatible with it. However, if you need an specific CAT 3 coupler, please look at to our specific CAT 3 series of products.
  FEATURES * ETL verified to TIA/EIA 568B Cat 6.

* UL and CSA approved.

* Our standard style allows compatibility with many other brands and systems.

* Rugged Construction.

* Eight vivid colors to choose from.

* High performance Copper alloy contacts & 50 microns gold plated.

* Competitively priced.

* To ensure long life all our CAT6 series are punch down style.

* Also available HS and FS (see text above).

* Material: ABS UL94V-0.
  HOW TO ORDER LP-SC6AXXCC, Modular Jacks Cat 6

S: Series
7=7000 Series
8=8000 Series
C6=Cat 6 568A/568B

A: Connectorization
P: Punch down style (needs tool)
T: Tooless style (Non Recommended)

XX: Shield Level
HS:Half Shielded
FS:Fully Shielded

WH: White
GN: Green
YL: Yellow
BL: Blue
RD: Red
BK: Black
GR: Gray

LP-7C6PFSWH, Modular Jacks Cat 6 7000 Series Punch down style Fully Shielded White
