LP-RU07KV17

KVM 8 PORT PS2/USB CAPABLE SWITCH, WITH 17” LCD MONITOR AND ON SCREEN DISPLAY (OSD), 19” WIDTH RACK MOUNTABLE WITH A 503.6 MM DEPTH AND 1 U HEIGHT.

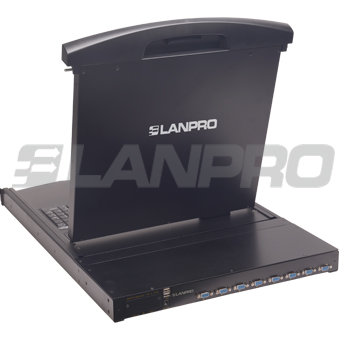

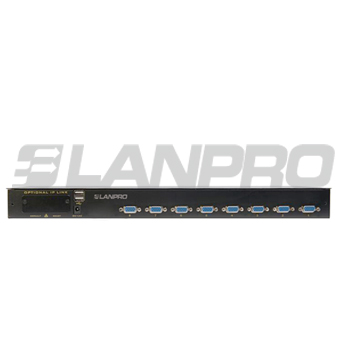

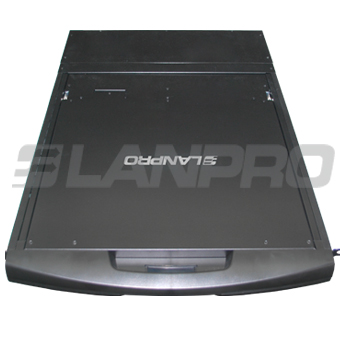

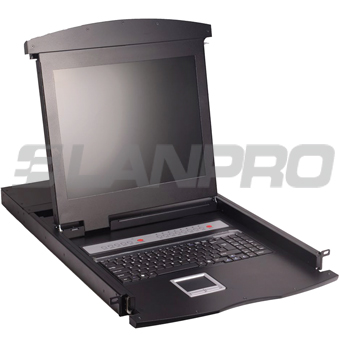

  The LP-RU07KV17 KVM 8 Port PS2/USB Capable Switch, with 17” LCD Monitor and On Screen Display (OSD), is 19” Width Rack mountable with a 503.6 mm Depth and 1U Height is VGA compatible and a versatile Control Platform that integrates an 8 port KVM Switch with a 17 inch LCD monitor, its keyboard and a touch pad mouse into a very slim chassis. I comes with On Screen Display (OSD) feature.

This device gives an operator the capability to remotely operate up to 8 PC type Computers.


  FEATURES Control Platform

* Control platform with LCD, keyboard, mouse and 8 ports VGA KVM switch.

* 1U height, suitable for 19’’ standard cabinet installation with metal structure.

* 17” LED screen with high brightness, high clear and high resolution.

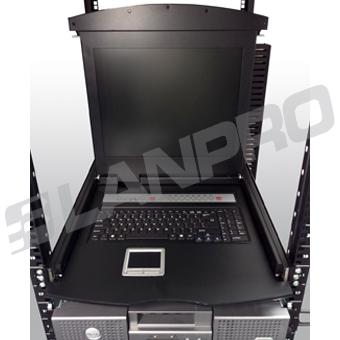

* Control platform can be totally pulled out from the cabinet and the LCD screen can be turned on to 120 degrees.

* Ultra thin keyboard with keypad.

* Mouse touch board with two function button.

* Front panel with lock to prevent damage by accident.

* Built-in power.

* Automatic power on/off. When pulling control platform out from cabinet, the power turns off automatically. When pushing it into the cabinet, the power turns on automatically.

* An easy to use On Screen Display (OSD) menu.


Switch

* One control platform can control 8 PC type computers by direct connection.

* Compatible with USB/PS.2 standard interfaces.

* Supports VGA, SVGA, XGA video input.

* In accordance with DDC, DDC2, DDC2B standard and VESA standards.

* Supports a maximum resolution of 1920 x 1080 pixels.

* Supports multiple operating systems: WIN95/98/98SE/ME/200/ XP/7/NT, UNIX and LINUX.


  HOW TO ORDER LP-RU07KV17 KVM 8 Port PS2/USB Capable Switch, with 17” LCD Monitor and On Screen Display (OSD), 19” Width Rack mountable with a 503.6 mm Depth and 1 U Height.
