LP-4CEFSXX

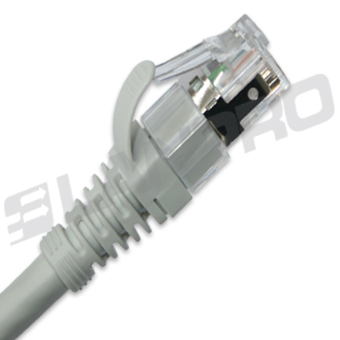

CAT 5E FULLY SHIELDED F/UTP PATCH CORDS.





LanPro’s new design offers a unique solution to high-density patching installations. Ideal for high density patch panels, blade servers, notebooks and other products with a dense setup of RJ45 outlets.

The LanPro LP-4CEFSXX fully shielded Cat 5e patch cords are made with a very flexible F/UTP aluminum foil shielded cable, which translates into soft bends and easy handling.

The use of hot-molded snag-less boots, including strain relief on the fully shielded cable and plug avoiding the damage to the locks when handling the cables in dense installations.

Eight Bright solid colors that don’t cause confusion, UV additives diminish color fading along the years.

Our factory, hot-molded strain-relief provides very high mechanical strength assuring long life and many years of use and abuse.

All LanPro patch cords are 100% factory tested using top-of-the line test equipment. Don’t compromise the performance of your installation with home-made patch cords or cheap imitations. LanPro patch cords are not only very good, but also very affordable. Our units are guaranteed to perform in compliance with ISO/IEC 11801 standards, EIA/TIA 568A/B, EN50173 and UL, CSA, ETL and 3P are verified.


  FEATURES
* Fully shielded snagless F/UTP Patch Cords.

* UL, CSA approved.

* ETL verified.

* Cat 5e patch cords are backward compatible with Cat 5 and lower category systems.

* Custom lengths available upon request.

* Made of highly flexible, stranded data cable.

* Factory molded strain-relief boots for a long life and great appearance. Manipulation  and pulling of these patch cords is no longer a matter of concern for the installer.

* Fully, 100% factory tested.

* 568A/B Compatible, B, preferred inventory

* Eight vivid colors to choose from.

* 0.5m, 1m, 2m, 3m, 4m, 6m and 20m lengths currently available. (Aprox: 1.5, 3, 6, 10,
13, 20 and 65 feet).

* Custom-lengths available upon request.


  HOW TO ORDER LP-4CEXXCCL, High Density Patch Cord 4 Pairs CAT 5e+

4CE
4CE= 4 Pairs CAT 5e+

XX: Plug Type
US: Unshielded
FS: Fully Shielded

CC: COLOR
WH: White
GN: Green
YL: Yellow
BL: Blue
RD: Red
BK: Black
GR: Gray
OR: Orange

L: Lenght
05=0.5m
1=1m
2=2m
3=3m
4=4m
6=6m
20=20m

eg.
LP-4CEFSWH05 High Density Fully Shielded Patch Cord 4 pairs CAT 5e White 0.5 m.

Note: All models are a snagless hot molded design. Wires are stranded copper AWG #26. T568 B type preferred inventory.
