The LP-AR8XX 8000 Series of All weather outdoor Cabinets are mainly used in wireless communication base station, such as 4G systems, communication/network integrated service, access/ transmission switching station, emergency communication/transmission etc.
These cabinets are designed to make the equipment have a longer working life and have more stable performance.
|
|||
| FEATURES |
* The cabinet is dustproof, sunproof and rainproof.

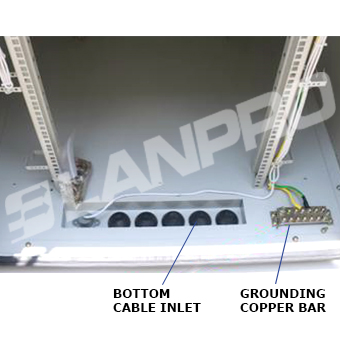

* Cabinet cooling: DC48V fans. MTBF≥50000h. * The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and
optical cable.
* All the cables used in the cabinet are made from flame retardant materials. * The cabinet includes grounding bar. * Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated. * Cabinet load bearing: ≥600kg. * Flame retardance: comply with GB5169.7 test A. * Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M / 500V (DC).
* Withstand voltage: The withstand voltage between grounding devices and cabinet body parts is not lower than 3000V (DC)/1min.
* Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N. |
||
| HOW TO ORDER |
LP-AR8XX All Weather Outdoor Cabinets 8000 Series.
|
||
