LP-FLSTXX2

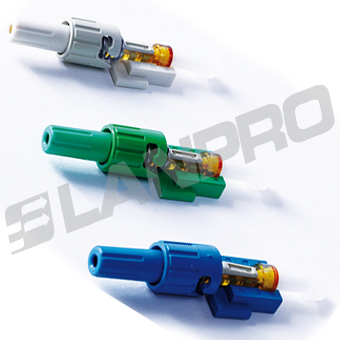

FusionLess® 2 Optical Mechanical Connector ST




  The FusionLess® 2 Optical Mechanical Connectors by LanPro is designed for fast and simple field termination of FTTH Drop cable and Indoor cables without any extra manufacturing process like polishing and epoxy on the ferrule. The FusionLess® 2 is made with high precision and quality zirconia ferrule and provide a highly reliable connection in most of the fiber optic network application.

  FEATURES * Quick and easy fiber termination.

* Reusable termination capability (up to 5 times).

* High success rate of connection.

* Superior optical characteristic value.

* Simple assembly process.

* No failure after opening.

Applications

* Fiber Optic Telecommunication.

* Fiber Distribution Frame.

* FTTH Outlets.

* Optical Cable Interconnection.

* Cable Television.


  HOW TO ORDER LP-FLCCMMDPBE

LP-FL: FussionLess® Optical Connector Field Installable

CC: Connector type
ST: ST Conector

MM:  Fiber Mode and type
M1: Multimode OM1 IEC 60793-2-10 Type A1b 62.5/125μm
M2: Multimode OM2 IEC 60793-2-10 Type A1a.1 50/125μm
M3: Multimode OM3 IEC 60793-2-10 Type A1a.2 50/125μm
M4: Multimode OM4 IEC 60793-2-10 Type A1a.3 50/125μm
S1: Singlemode ITU-T G.652.D Type B1.3 9/125μm

D:  Fiber cable diameter
1: 0.9mm
2: 0.25mm
3: Ambos 0.9 y 0.25mm
4: 2.0mm
5: 3.0mm
6: 2x3 y 1.6x2 mm GPON

P:  Color Housing
1: Blue (SM)
2: Green (APC)
3: Black (OM2)
4: Beige (OM1)
5: Aqua (OM3/OM4)

B:  Boot Color
1:  White

E:  Line
2:  FusionLess® 2 line

Examples:

LP-FLSTS11112 FusionLess® 2 Connector, ST, Singlemode, PC Polish, ITU-T G.652.D Type B1.3 9/125μm, Fiber cable diameter 0.9mm, Blue Housing, White boot.

LP-FLSTS15212 FusionLess® 2 Connector, ST, Singlemode, APC Polish, ITU-T G.652.D Type B1.3 9/125μm, Fiber cable diameter 3mm, Green Housing, White boot.
