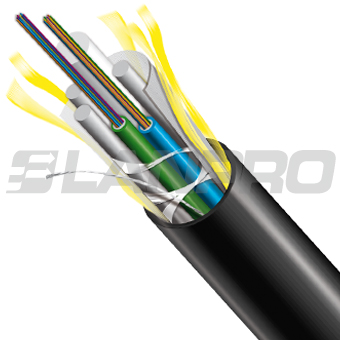

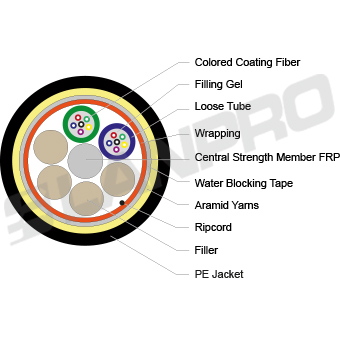

The LP-OC51XX Series of Outdoor Fiber Optic Cables with Multi-Fiber Gel Filled Loose Tubes and Single PE Black Color Jacket comes with an FRP Central Strength Member and Peripheral Aramid® Yarns for strength, Dry Water Block Tape with Rip Cord, from 4 to 144 Fibers are what the industry calls Outside Plant Cables, for underground conduits or ducts or in aerial/lashed deployment for Outdoor applications of the light ADSS Type. The tubes contain up to 12 optical fibers and summing up from 4 to 144 in total, color coded as per color coding scheme. |
|||
| FEATURES |
* 004-144 Fibers. * All Dielectric Self Supporting Optical Cable for up to 75m span. * Outdoor usage. * Single PE Jacket. * Aramid® Yarns for Protection * FRP Strength Member. * Loose tube gel-filled construction for superior fiber protection. * UV- and moisture-resistant design. * Dry Water Block tape with ripcord. Applications: * Interbuilding voice or data communication backbones. * Campus LAN, (CAN). * Designed for rough conditions. * Outside Plant usage. * Usable lashed Aerial, ducted or direct burial. * Junction type Communication Systems. * Subscriber network systems. * Local area network systems. * Usable on long-haul applications. * Light ADSS Type. |
||
| HOW TO ORDER |
LP-OC5112CCC4FF LP-OC51: Outdoor Loose Tube Single PE Jacket Fiber Optic Cable, with FRP Central Strength Member and peripheral Aramid® yarns for strength. 12 Jacket Suffix: Dry Water Block Tape with Ripcord. CCC: Fiber Count: 004-144 4: Buffer Construction: Multi-fiber loose Tube (Gel-Filled). FF Fiber Type: QL: Multi-mode: 62.5/125-IEC 60793-2-10, type A1b. BI: Multi-mode: 50/125-IEC 60793-2-10, type A1a.1 ZC: Singlemode: 9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC51120064QL: Outdoor multi-fiber gel filled Loose Tube Single PE Jacket Fiber Optic Cable, with FRP Central Strenght Member and peripheral aramid yarns for strength, Dry water block with rip cord, 6 fibers Multi Mode OM1 62.5/125 1 Gb/s over 500m at 850 nm, 1 Gb/s over 1000 m at 1300 nm black color jacket. LP-OC51120064ZC: Outdoor Loose Tube Single PE Jacket Fiber Optic Cable, with FRP Central Strength Member and peripheral aramid yarns for strength dry water block with rip cord, 6 Single Mode Full spectrum low water peak 900um ITU-T G.652.D B1.3 9/125 fibers black color jacket. |
||
