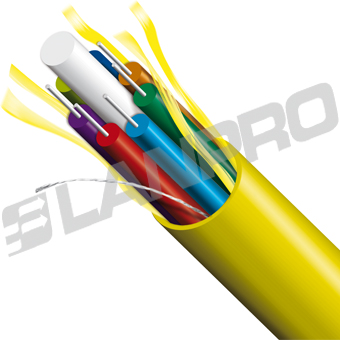

The LP-OC31XX is a family of Fiber Optic Cables LANPROFLEX™ is what the industry calls an Indoor metal free Opctical Fiber Cable, suitable for installation on overhead routes, and due to the non metallic construction, they may be installed in areas where there are high intensity electric fields like in the vicinity of high lightning density areas and high voltage lines, mostly in underground conduits or ducts or in aerial/lashed deployment for Indoor applications.
With two types of strength members, one made of Fiber Reinforced plastic (FRP) and the other made with Aramid® yarn, ensures tension-resistance and long-term stability in transmission. This cable possesses the properties of small outer diameter, light-weight, Zero Halogen jacket with flame-retardant that protects people when it takes fire;it is easy to strip with the help of its rip cord and is dry water blocked for protection against water absortion.
The use of high quality fiber cores like INFINICOR® and Clearcurve® multimode fibres and SMF-28e+™ by CORNING® for Single mode with low Water Peak characteristics result in a very low attenuation cable.
LANPROFLEX™ is the name we have given this family of cables because of its outstanding flexibility while protecting the fiber cores against excessive bending or pulling or crushing while manipulating. It is physically soft and allows direct connection between tight-buffered cableswith fusion or mechanical splices and/or connectors. It is suitable for installation and operation and also convenient for maintenance.
|
|||
| FEATURES |
Performance:
* High quality Corning® Cores for World Class Performance.
* LANPROFLEX™ Outstanding flexibility and handling.
* Zero Halogen jacket flameretardant for protection of people when taking fire LSZH.
* Lightweight, all dielectric selfsupporting(ADSS) construction is ideal for use near electrical power lines.
Convenience:
* Usable in indoor cabling or forInter-building voice or data communication backbones.
* Installable in ducts, underground conduit or aerial/lashed and as connecting soft
cable along walls, ceiling, layers and tubes.

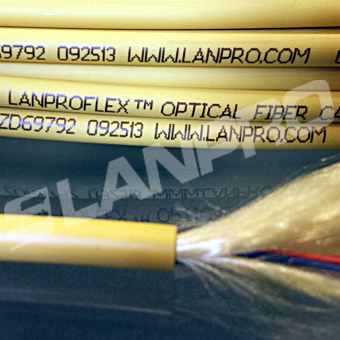

* High visibility bright yellow jacket for easier identification in bundles.
Mechanical:
* The strength members, made of Fiber Reinforced plastic (FRP) and Aramid® yarn, ensures tensionresistance and long-term stability in transmissionand superior fiber
protection.
* Good mechanical and temperature performance.
* Good crush resistance and dry water blocking.
* Tight buffer provides individual fiber protection.
Ease of termination:
* Very easy to strip and terminate.

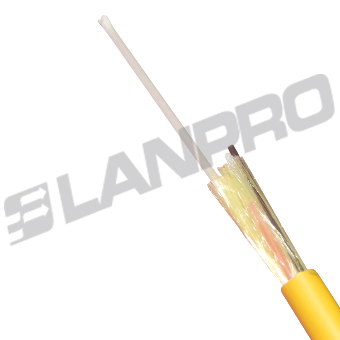

* Aramid strength members reinforce and protect the fibers and reduce weight for longer span lengths.

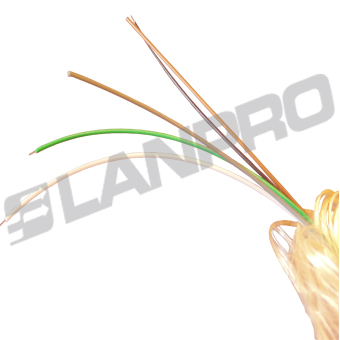

* Tight buffered fibers are easy to handle and strip for field termination.
|
||
| HOW TO ORDER |
LP-OC3112CCC1FF

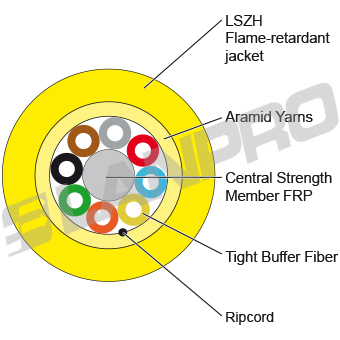

LP-OC31: Tight Buffer Distribution Fiber Optical Cable, LSZH rated Jacket with FRP Central Strength member.
12 Jacket Suffix: Dry Water Block with Ripcord CCC Fiber Count: 001 - 072 4 Buffer Construction: Tight buffer.
FF Fiber Type:

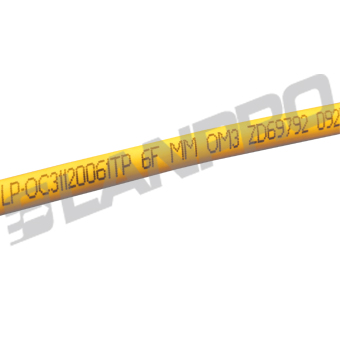

QL: Multi-Mode-62.5/125-IEC 60793-2-10 Type A1b. BI: Multi-Mode-50/125-IEC 60793-2-10 type A1a.1 ZC: Single-Mode-9/125-Full spectrum, low water peak singlemode, ITU-T G.652.D/B1.3 Standards. Examples: LP-OC31120061TP LANPROFLEX™, tight buffer distribution fiber optical cable with 6 multimode OM3 50/125 fibers, LSZH rated jacket, FRP central strength member, peripheral Aramid® fibers, dry water block and Rip cord. LP-OC31120061BI LANPROFLEX™, tight buffer distribution fiber optical cable with 6 multimode OM2 50/125 fibers, LSZH rated jacket, FRP central strength member, peripheral Aramid® fibers, dry water block and Ripcord. |
||
