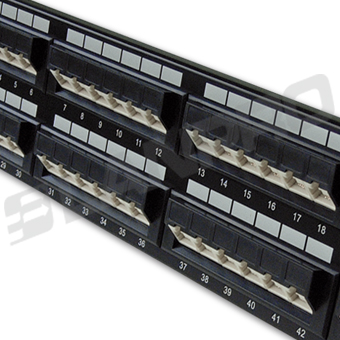

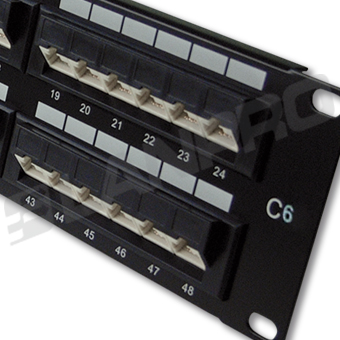

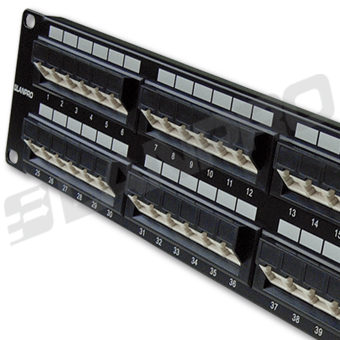

The LanPro 8000 series CAT 6 48 port patch panels with entrance angle of 45 degrees are used on high speed LAN Gigabit transmission systems, with a proven bandwith in excess of 250 Mhz. These units are developed with propietary printed circuit board (PCB) and improved component geometries, resulting in a better performance, surpassing the TIA/EIA specifications. This new design IDC connector allows the use of both, Kröne and 110D punching tools, and has colored 568-A and 568-B labels to facilitate wiring. The 45 degree angle entry is a very desirable feature, because there is less stress for both, the jack panel and the connecting cords. The bend radius is improved and this feature naturally protects the connection point from being disturbed or damaged. |
|||
| FEATURES |

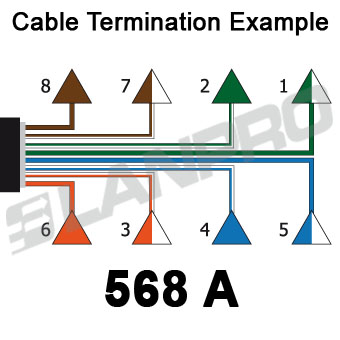

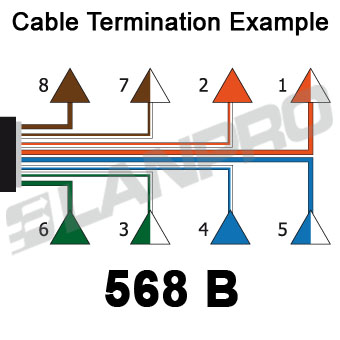

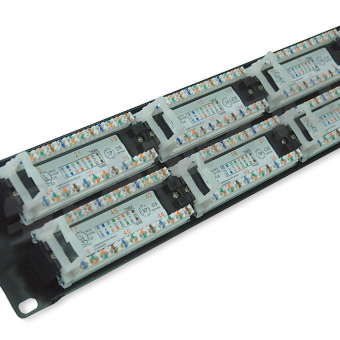

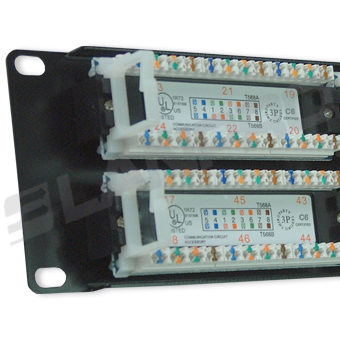

* ETL verified to TIA/EIA 568-C.2 CAT 6. * Handles larger CAT 6 conductors. * Center tuned to LanPro patch cords. * UL and CSA USA and CANADA approved. * Superior performance to traditional designs, improved 45 degree entry angle that avoids dust and dirt particles. * Better bending radius for less stress to patch cords. * 568-A and 568-B compatible. * Universal 110 wiring termination. * Rugged Construction. * Cable Management clips at the rear of the unit. * Backwards compatible with CAT 5e systems. * Black durable and elegant finish. * High performance Copper alloy contacts, 50 micro-inches of gold plating. * Life of 200 Punch cycles. * 750 cycles of jack insertion (worst case). * Outstanding price/performance ratio. * Fully compatible with 19” rack mount standards. * High Density and low profile design supports good cabling practice. * Lanpro World Wide Warranty. * Labeling provision as per EIA/TIA 606-A. * Unshielded type. |
||
| HOW TO ORDER | LP-P8C64845USD 8000 series Unshielded CAT 6 Patch Panel with 48 ports and 45 degrees of entry angle. | ||
