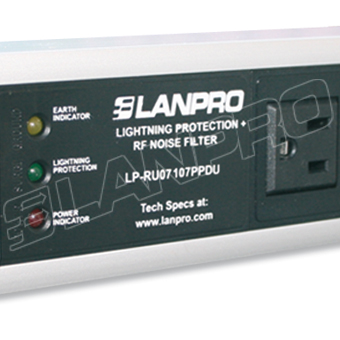

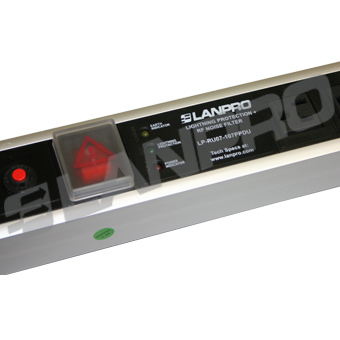

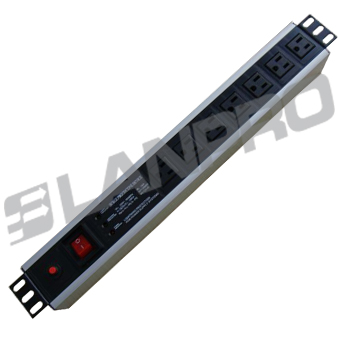

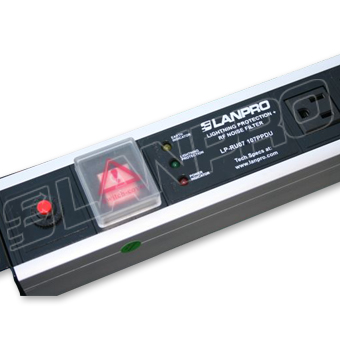

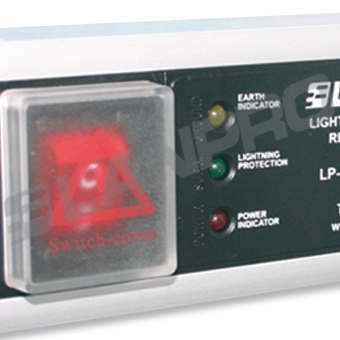

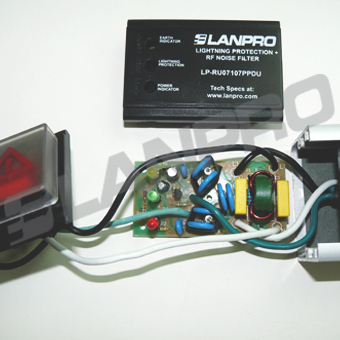

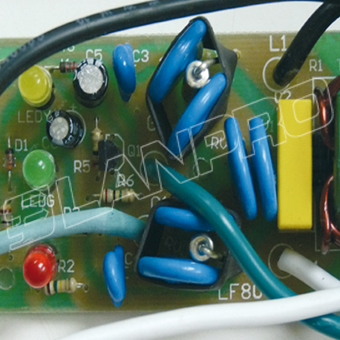

The LP-RU07107PPDU Power Distribution Unit (PDU) by LanPro is an excellent option for applications that require a mains feeder in the back of large 19-inch cabinets and racks that come non-filtered, nor surge protected AC service mains. This PDU solves this issue by protecting the load against overloads produced by voltage, current or RF interference produced by other equipment in the mains circuit. This PDU unit comes enclosed in a robust anodized aluminum enclosure and carries seven (7) NEMA 5-15R, 125 VAC, 50/60 Hz grounded outlets. The maximum operating current drawn from the mains circuit is limited to 15 A and cannot deliver more than 1875 W total output summed. This PDU comes with a 15 A thermal breaker and an illuminated toggle switch with finger guard to avoid accidental operation. By the same token, this PDU has a 10000 Ampere surge discharge capacity and a voltage surge energy withstand of 2000 Joules from LN-LG-NG; besides that, it has an LED information panel whose colors indicate: Red: voltage, Green: Ground connector, Yellow: active overload protection. In series with this circuit is a common mode RF filter circuit that suppresses excess RF energy. This device has been designed for 19 inch wide rack mounting and uses 1½ units of vertical rack space. A 3 m long mains #16 AWG cable with a NEMA 5-15P grounded plug. Rango de temperatura en la que opera: -20 hasta +60 grados Celsius. |
|||
| FEATURES |

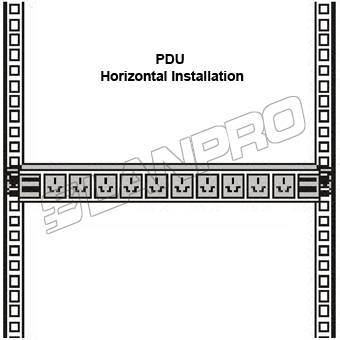

* Ideal for electric power distribution inside cabinets, racks, telecommunication and IT boxes with world class security and reliability. * Secure, organized, and neat electric power. * Seven NEMA 5-15R heavy duty outlets (7) with ground. * Enough mains cable length of 3 m. * Protection block against up to 2000 Joules surge voltages. * Overcurrent protection wih thermal breaker 15 A. * Over voltage protection. * Interruption capacity 1000 A. * RF filtering protection. * Accepts NEMA 5-15P plugs. * Guarded on-of switch. * Easy mounting on 19-inch racks, cabinets, wall cabinets, work benches. * 15 A thermal breaker. * 10000 A surge discharge current capacity. * 1875 W added maximum capacity. * Long lasting anodized aluminum extrusion case. |
||
| HOW TO ORDER | LP-RU07107PPDU Aluminum Body Power Distribution Unit, seven (7) NEMA 5-15R outlets, 125 VAC, 50/60 Hz, maximum working current of 15 A, with 1875 W of maximum output power, protected with a 15 A thermal resettable interrupter, lighted rocker switch with finger guard, up to 10000 A surge discharge capacity and 2000 Joules LN-LG-NG surge energy protection block with information panel with red LED voltage indicator, green LED ground connected indicator, yellow LED surge protection active indication and common mode HF noise filter. Width: 19”, height: 1 ½ U, and a 3 m 3x AWG#16 grounded power cord terminated with a NEMA 5-15P plug. | ||
