The LanPro Gigaspeed LP-ICF31XXDYY series BiDi Single Fiber Media Converters operate as seamless translators between a 10/100/1000M UTP port and optical ports.

The IP data is immediately and flawlessly translated from one port to the other, both ways. By using 1310/1550nm BiDi WDM single fiber signal transmission scheme, they extend the network coverage from the UTP limit of 100m to up to 80Km.

The 550m Multi-Mode version is recommended if you wish to go Gigabit when Multi-Mode fiber is already installed in short-haul legacy networks.


LP-ICF31XXDYY BiDi WDM Gigabit 10/100/1000M Series Media Converters

LP-ICF3100D2
Single Fiber, WDM, 1310nm/1550nm Multi-Mode, Gigabit 10/100/1000M SC Media Converter, Supports 2km transmission. (Sold in pairs).
LP-ICF3100D20
Single Fiber, WDM, 1310/1550nm Single-Mode, Gigabit 10/100/1000M SC Media Converter, Supports 20Km transmission. (Sold in Pairs).
LP-ICF3100D40
Single Fiber, WDM, 1310/1550nm Single-Mode, Gigabit 10/100/1000M SC Media Converter, Supports 40Km transmission. (Sold in Pairs).
LP-ICF3100D80
Single Fiber, WDM, 1310/1550nm Single-Mode, Gigabit 10/100/1000M SC Media Converter, Supports 80Km transmission. (Sold in Pairs).
LP-ICF3100D05
BiDi Single Fiber Gigabit Media Converter, 1310nm/1550nm Multi- Mode, WDM, 10/100/1000M, Supports 550m transmission. SC Connector. Sold in pairs.
LP-ICF31A1D05
BiDi Single Fiber Gigabit Media Converter, 1550nm/1310nm Multi- Mode, WDM, 10/100/1000M, Supports 550m transmission. SC Connector. Sold single side.
LP-ICF31A2D05
BiDi Single Fiber Gigabit Media Converter, 1310nm/1550nm Multi- Mode, WDM, 10/100/1000M, Supports 550m transmission. SC Connector. Sold single side.
LP-ICF31A2D80
BiDi Single Fiber Gigabit Media Converter, 1310nm/1550nm Single-Mode, WDM, 10/100/1000M, Supports 80km transmission. SC Connector. Sold single side.
LP-ICF31A1D80
BiDi Single Fiber Gigabit Media Converter, 1550nm/1310nm Single-Mode, WDM, 10/100/1000M, Supports 80km transmission. SC Connector. Sold single side.
LP-ICF31A2D40
BiDi Single Fiber Gigabit Media Converter, 1310nm/1550nm Single-Mode, WDM, 10/100/1000M, Supports 40km transmission. SC Connector. Sold single side.
LP-ICF31A1D40
BiDi Single Fiber Gigabit Media Converter, 1550nm/1310nm Single-Mode, WDM, 10/100/1000M, Supports 40km transmission. SC Connector. Sold single side.
LP-ICF31A1D2
BiDi Single Fiber Gigabit Media Converter, 1550nm/1310nm Single-Mode, WDM, 10/100/1000M, Supports 2km transmission. SC Connector. Sold single side.
LP-ICF31A2D2
BiDi Single Fiber Gigabit Media Converter, 1310nm/1550nm Single-Mode, WDM, 10/100/1000M, Supports 2km transmission. SC Connector. Sold single side.
LP-ICF31A1D20
BiDi Single Fiber Gigabit Media Converter, 1550nm/1310nm Single-Mode, WDM, 10/100/1000M, Supports 20km transmission. SC Connector. Sold single side.
LP-ICF31A2D20
BiDi Single Fiber Gigabit Media Converter, 1310nm/1550nm Single-Mode, WDM, 10/100/1000M, Supports 20km transmission. SC Connector. Sold single side.

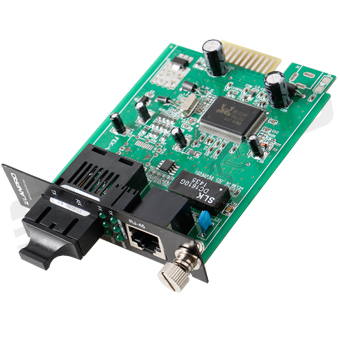

LP-ICF31A2D203
BiDi Single Fiber Media Converter card version for chassis mount, 1310nm/1550nm Singlemode, WDM, 10/100/1000M, supports 20km transmission. SC Connector. Single side.
